Rear window wiper & washer system, assembly

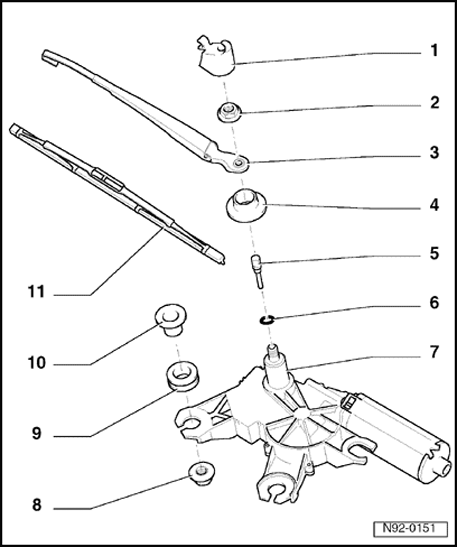

Fig 1: Exploded View Of Rear Window Wiper & Washer System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cap

2 - Hex nut 13mm

• 15 Nm

3 - Wiper arm

• Adjusting rest position. Refer to Rear window wiper rest position, adjusting

4 - Seal

5 - Washer jet

• Adjusting. Refer to Rear window washer jets, adjusting
• Replacing. Refer to Rear window washer jet, replacing

6 - Seal

Fig 2: Exploded View Of Rear Window Wiper & Washer System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

7 - Rear Window Wiper Motor -V12-

• Removing and installing. Refer to Rear window wiper motor -V12-, removing

8 - Hex nut M6

• 8 Nm

9 - Rubber ring

10 - Spacer

11 - Wiper blade

• Removing and installing wiper rubber. Refer to Wiper rubber, removing and installing
