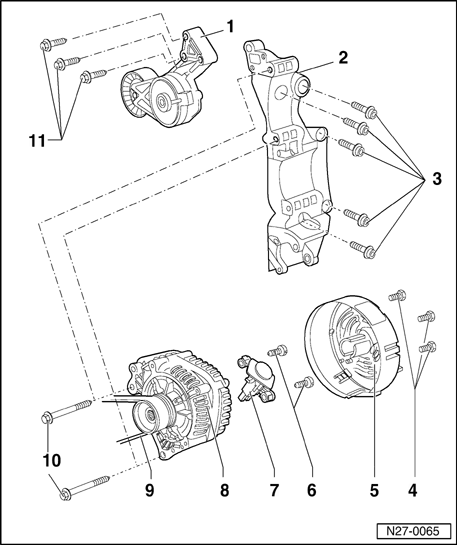

4-cylinder gasoline engines through 04.99, assembly

1 - Tensioner

2 - Bracket

3 - Hex socket bolts

• M10 x 45mm
• 45 Nm

4 - Hex bolts

• M3 x 18mm

5 - Protective cap

6 - Screws

• M4 x 25mm

7 - Voltage Regulator (VR)

• Removing and installing. Refer to Voltage Regulator (VR), removing and installing
• Checking carbon brushes. Refer to Generator (GEN) carbon brushes, checking

8 - Generator (GEN)

• Tightening torque of B+ wire to generator. Refer to Generator (GEN) B+ & D+ connections, securing  .

9 - Ribbed belt

• Removing and installing. Refer to Ribbed belt, removing and installing
• Ribbed belt routing. Refer to Ribbed belt routing

10 - Hex bolts

• M8 x 85mm
• 25 Nm

11 - Hex bolts

• M8 x 45mm
• 25 Nm
