Generator (GEN) ribbed belt pulley, replacing

Special tools and auxiliary items needed

Fig 1: Torque Wrench V.A.G. 1332 (40 To 200 Nm)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• VAG 1332 Torque wrench (40 - 200 Nm)

Fig 2: 3310 Socket

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• 3310 Socket

Removing and installing

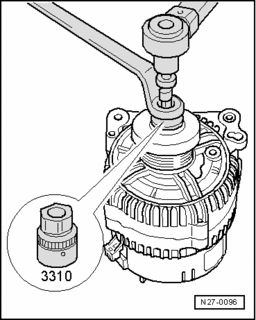

Fig 3: Loosen/Tighten Nut At Pulley With Wrench And Adapter 3310

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Loosen/tighten nut at pulley with wrench and adapter 3310 while counter-holding generator drive with appropriate socket as illustrated
• Torque nut to 65 Nm.
