Electrical and electronic components, locations: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.
- Disconnect negative ( - ) battery terminal.
- When disconnecting and reconnecting battery terminals, observe all applicable Notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks as specified in 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL

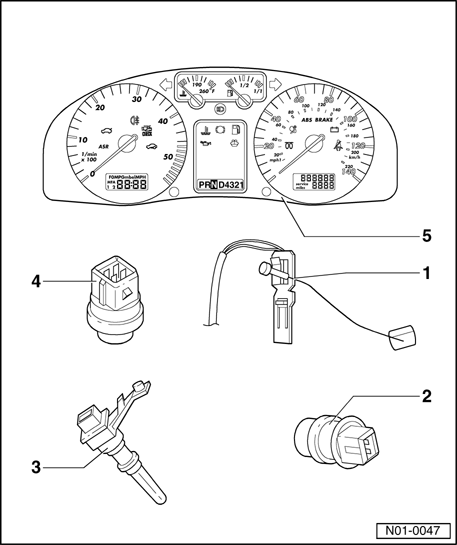

1 - Sender for fuel gauge -G-
- Location. See Sender For Fuel Gauge -G-
- Monitored by OBD
2 - Outside Air Temperature Sensor -G17- (where applicable)
- Location.
- Monitored by OBD
3 - Speedometer Vehicle Speed Sensor (VSS) -G22-
- Location.
- Monitored by OBD
4 - Engine Coolant Temperature (ECT) Sensor -G2-
- Location depends on type of engine
Refer to 24 MULTIPORT FUEL INJECTION (MFI) for 2.0 LITER 4-CYL. 2V ENGINE MECHANICAL, FUEL INJECTION & IGNITION, ENGINE CODE(S): AEG, AVH, AZG, BBW, BEV and 24 MULTIPORT FUEL INJECTION (MFI) for 2.8 LITER VR6 2V FUEL INJECTION IGNITION, ENGINE CODE(S): AFP
- Monitored by On Board Diagnostic (OBD)
5 - Instrument Cluster -K-
- Monitored by OBD
