Electrical and electronic components, locations: Notes
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.
- Disconnect negative ( - ) battery terminal.
- When disconnecting and reconnecting battery terminals, observe all applicable Notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks as specified in 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL

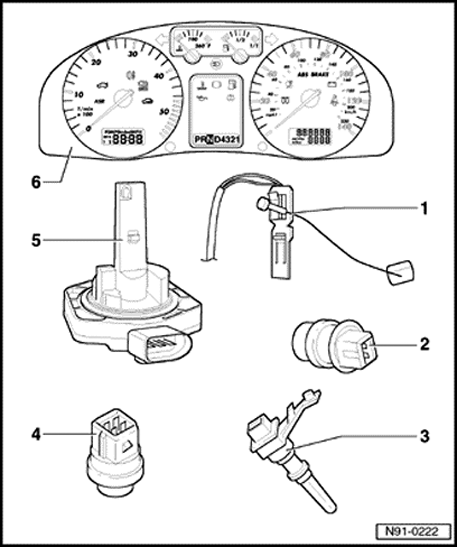

1 - Sender for gauge sender -G-
- Location. See Sender for fuel gauge -G-
- Monitored by OBD
2 - Outside Air Temperature Sensor -G17- (where applicable)
- Location.
- Monitored by OBD
3 - Speedometer Vehicle Speed Sensor (VSS) -G22-
- Location.
4 - Engine Coolant Temperature (ECT) Sensor -G2-
- Location
Refer to 23 DIESEL FUEL INJECTION
Refer to 24 MULTIPORT FUEL INJECTION (MFI) for 1.8 LITER 4-CYL. 5V TURBO FUEL INJECTION & IGNITION, ENGINE CODE(S): AWD, 24 MULTIPORT FUEL INJECTION (MFI) for 1.8 LITER 4-CYL. 5V TURBO FUEL INJECTION IGNITION, ENGINE CODE(S): AWW, AWP, 24 MULTIPORT FUEL INJECTION (MFI) for 2.0 LITER 4-CYL. 2V ENGINE MECHANICAL, FUEL INJECTION & IGNITION, ENGINE CODE(S): AEG, AVH, AZG, BBW, BEV and 24 MULTIPORT FUEL INJECTION (MFI) for 2.8 LITER VR6 2V FUEL INJECTION IGNITION, ENGINE CODE(S): AFP
- Monitored by OBD
5 - Not applicable
6 - Instrument Cluster -K-
- Monitored by OBD
