Front seat cover and upholstery, removing and installing: Removing

• Remove seat → Front seats, removing and installing  .
• Remove backrest → Front backrest, removing and installing  .

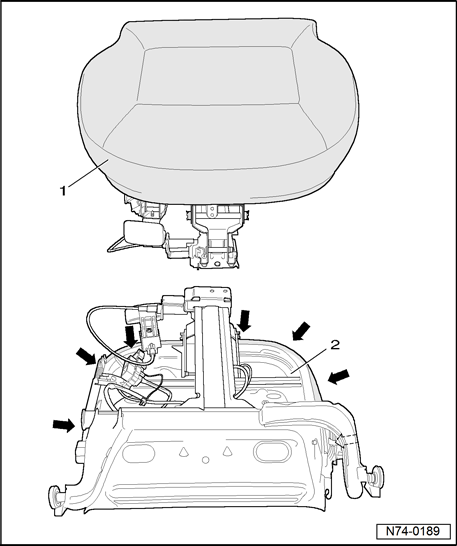

• Pull off cover - 1  - from seat frame - 2  - - arrows  -.

Fig 1: Pulling Off Cover From Seat Frame

Courtesy of VOLKSWAGEN UNITED STATES, INC.

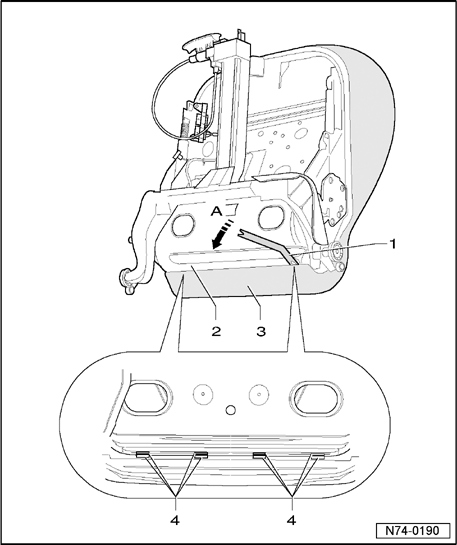

• Guide pry lever 80 - 200 - 1  - between seat frame - 2  - and cover - 3  - and press apart locking lugs - 4  - - arrow A  -.
• Remove cover - 3  - and cushion from seat frame - 2  -.

Fig 2: Guiding Pry Lever Between Seat Frame And Cover And Pressing Apart Locking Lugs

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove cover.

Fig 3: Guiding Pry Lever Between Seat Frame And Cover And Pressing Apart Locking Lugs

Courtesy of VOLKSWAGEN UNITED STATES, INC.
