Seat cushion, assembly overview (Golf wagon/Jetta wagon)

WARNING: This page is about a different variant/trim than selected.

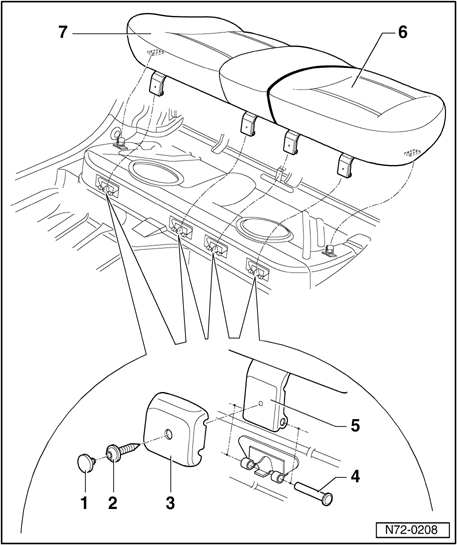

Fig 1: Seat Cushion Assembly Overview (Golf Wagon/Jetta Wagon)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover cap

2 - Screw

3 - Seat hinge cover cap

4 - Bolts

5 - Seat hinge

6 - Left seat cushion

7 - Right seat cushion
