Seat cushion with integrated child seat, removing and installing: Removing
WARNING: This page is about a different variant/trim than selected.

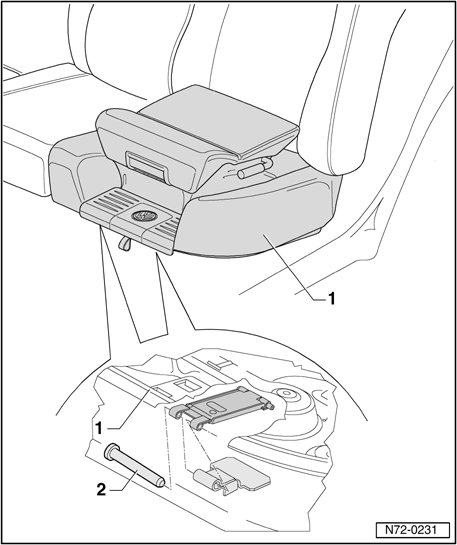

- Raise seat cushion - 1
- and pull forward.
- Remove pins - 2
- from seat hinges.
- Remove left seat cushion - 1
-.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
