8-way seat rear height adjustment drive, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

Bring seat to the uppermost position.
Remove seat → Front seats, removing and installing .
Remove 8-way seat trim → 8-way seat trim, removing and installing .
Using a screwdriver, disconnect harness connector - 1 - in - direction of arrow -.

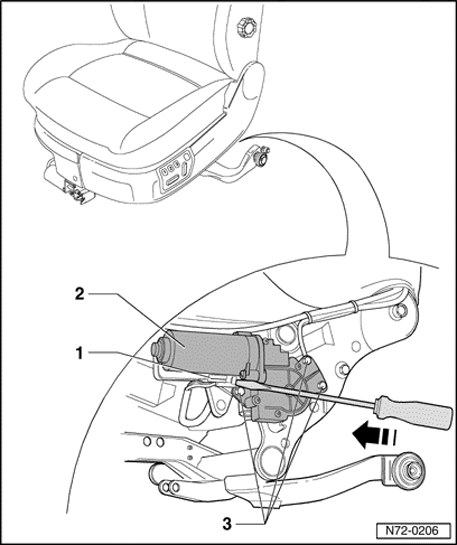

Fig 1: 8-Way Seat Rear Height Adjustment Drive, Removal/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
