Upper C-pillar trim, removing and installing (Golf wagon/Jetta wagon with side curtain protection 04.01): Installing

CAUTION: For safety reasons, steel clip - 1  - must be replaced after each removal and installation of C-pillar trim - 2  -.

NOTE:

• Steel clips and upper C-pillar trim parts can no longer be ordered separately for vehicles with side curtain protection → parts catalog.

• Insert steel clip - 1  - in C-pillar trim - 2  - in - direction of arrow  -.

Fig 1: Inserting Steel Clip In B-Pillar Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

• The upper section of trim panel must be fixed with steel clip - 5  - , until it engages audibly.
• Before installing trim, check clips - 4  - for damage and replace if necessary.
• Avoid damage due to striking!

• Clip trim - 1  - to C-pillar.

• Bolt belt relay - 3  - with bolt - 2  - (40 Nm) to C-pillar.

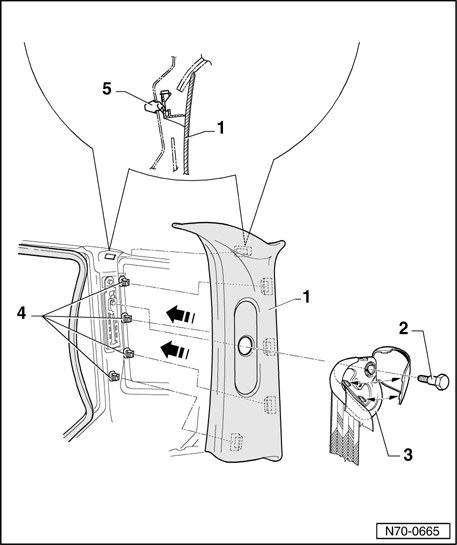

Fig 2: Clipping Trim To C-Pillar
