Upper C-pillar trim, assembly overview (Jetta without side curtain protection)

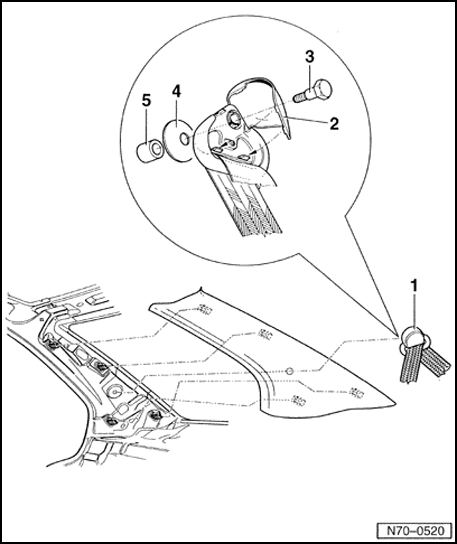

Fig 1: Upper C-Pillar Trim Assembly Overview (Jetta Without Side Curtain Protection)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Belt relay

2 - Cover cap for belt relay

3 - Hex head bolt

• Tightening torque: 40 Nm

4 - Tension disc

5 - Spacer sleeve
