Upper C-pillar trim, assembly overview (Golf without side curtain protection)

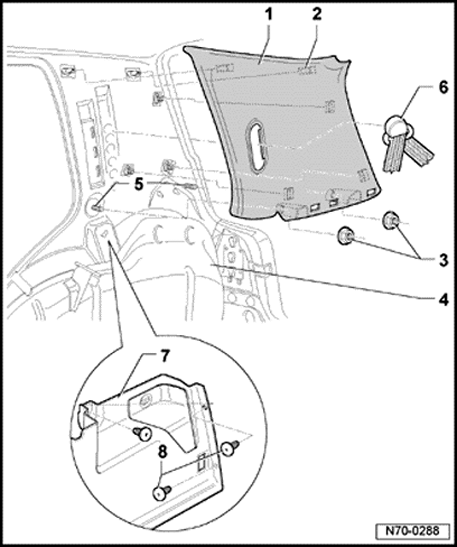

Fig 1: Upper C-Pillar Trim Assembly Overview (Golf Without Side Curtain Protection)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Upper C-pillar trim

• Removing → Upper C-pillar trim, removing and installing (Golf without side curtain protection)

2 - Securing clips

• Qty. 5

3 - Spring nuts

4 - Wheel housing

5 - Two threaded pins

6 - Belt relay

7 - Lower trim

8 - Plugs
