Upper C-pillar trim, assembly overview (Golf with side curtain protection)

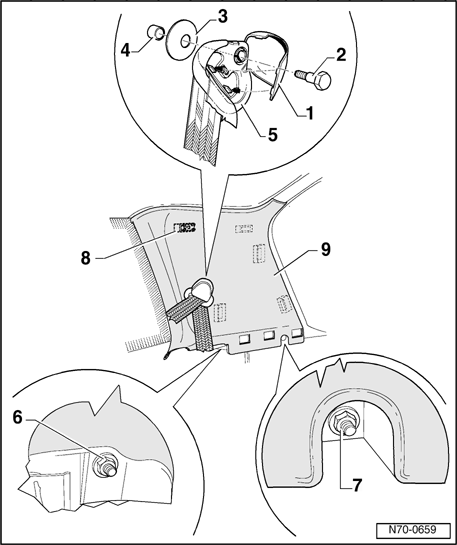

Fig 1: Upper C-Pillar Trim Assembly Overview (Golf With Side Curtain Protection)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover cap for belt relay

2 - Hex head bolt

• Tightening torque: 40 Nm

3 - Tension disc

4 - Spacer sleeve

5 - Belt relay

6 - Spring nut

7 - Spring nut

8 - Steel clip

9 - Upper C-pillar trim

• Removing → Upper C-pillar trim, removing and installing (Golf with side curtain protection)
