Upper C-pillar trim, assembly overview (Golf wagon/Jetta wagon without side curtain protection)

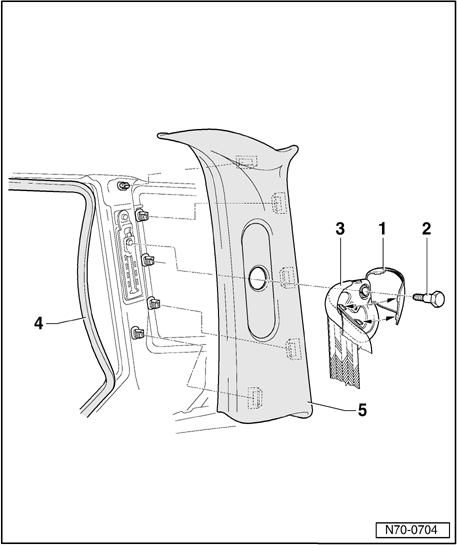

Fig 1: Upper C-Pillar Trim Assembly Overview (Golf Wagon/Jetta Wagon Without Side Curtain Protection)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover cap

2 - Screw

• Tightening torque: 40 Nm

3 - Belt relay

4 - Gasket

5 - Upper C-pillar trim

• Removing → Upper C-pillar trim, removing and installing (Golf wagon/Jetta wagon without side curtain protection)
