Upper B-pillar trim, removing and installing (Vehicles with side curtain protection 05.01 ): Installing

WARNING: This page is about a different variant/trim than selected.

Installation is performed in the reverse order of removal.

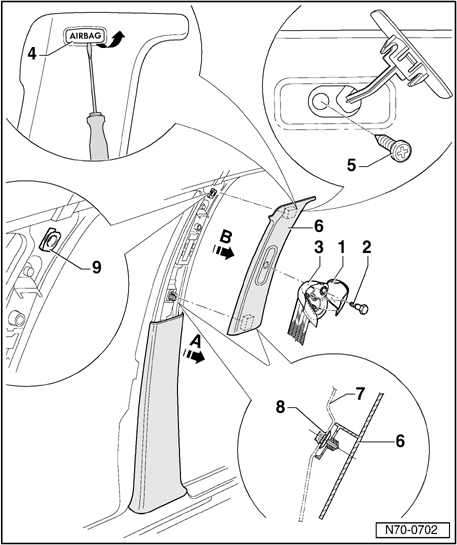

Fig 1: Upper B-Pillar Trim Assembly Overview (Vehicles With Side Curtain Protection 05.01 )

Courtesy of VOLKSWAGEN UNITED STATES, INC.

CAUTION: Check securing clip - 8 - and clip - 9 - for damage and replace if necessary before installing trim.

NOTE:

Steel clips and upper B-pillar trim parts can no longer be ordered separately for vehicles with side curtain protection → parts catalog.
