Upper B-pillar trim, assembly overview (Vehicles with side curtain protection 04.01)

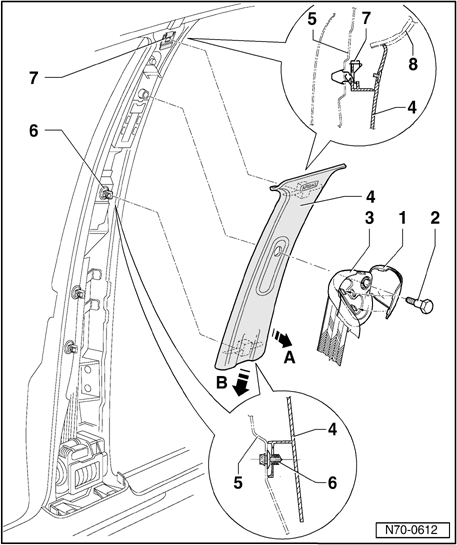

Fig 1: Upper B-Pillar Trim Assembly Overview (Vehicles With Side Curtain Protection 04.01)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cover cap

2 - Screw

• Tightening torque: 40 Nm

3 - Belt relay

4 - B-pillar trim

• Removing → Upper B-pillar trim, removing and installing (Vehicles with side curtain protection 04.01)

5 - B-pillar

6 - Retaining clip

7 - Steel clip

8 - Headliner
