Upper A-pillar trim, assembly overview (Vehicles without side curtain protection)

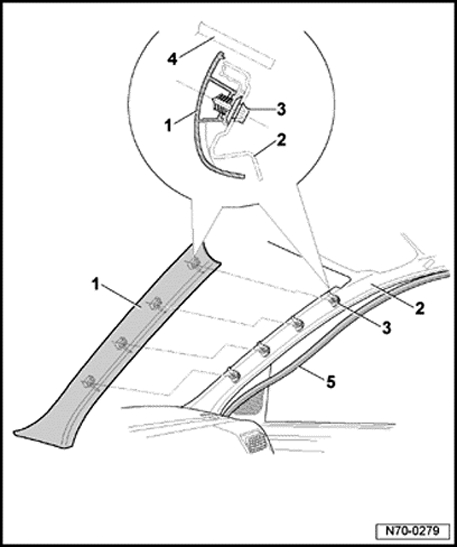

Fig 1: Upper A-Pillar Trim Assembly Overview (Vehicles Without Side Curtain Protection)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Trim

• Removing → Upper A-pillar trim, removing and installing (Vehicles without side curtain protection )

2 - A-pillar

3 - Clip

4 - Windshield

5 - Inner door seal
