Luggage compartment cover retraction spool, removing and installing: Removing

• Remove luggage compartment cover - 1  -.
• Disengage three locking lugs - arrows  - using a small screwdriver.
• Pry off retraction spool - 2  - out of mount using a small screwdriver.

• Guide collar - 3  - and lifting eyelet - 4  - through hole in luggage compartment cover.

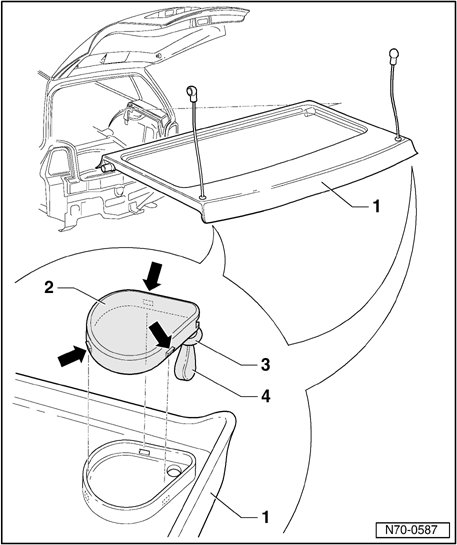

Fig 1: Luggage Compartment Cover Retraction Spool, Removal/Install

Courtesy of VOLKSWAGEN UNITED STATES, INC.
