Steering wheel, removing and installing: Installing
WARNING: This page is about a different variant/trim than selected.

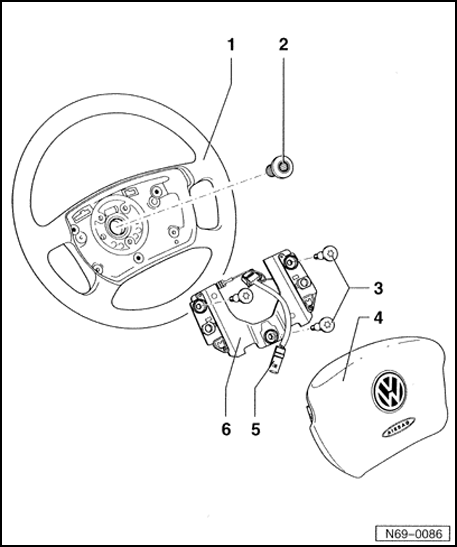

- Place steering wheel - 1 - onto steering column.
- The center markings on the steering wheel and steering column must align.
- The coil connector mounting and pin must be positioned in the opening provided at the base of the steering wheel.
- Fasten steering wheel with bolt - 2 - ; torque is 55 Nm.
- Mark bolt with punch indentation after each loosening procedure.
- If five punch indentations are on the bolt, it must be replaced with a new one.
