Side curtain protection (driver and passenger sides) (Jetta), assembly overview

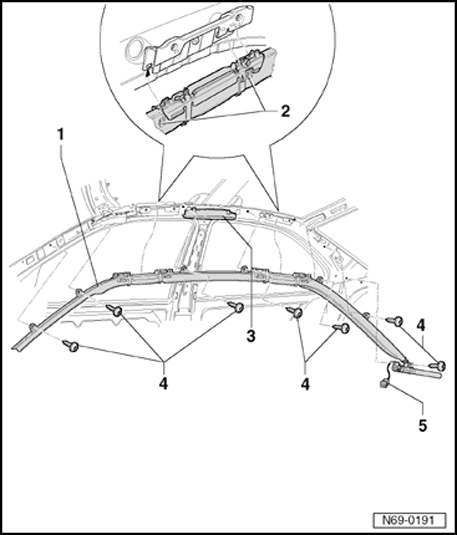

Fig 1: Side Curtain Protection Assembly Overview (Driver And Passenger Sides -- Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side curtain airbag

• Removing → Side curtain protection (driver and passenger sides) (Jetta), removing and installing

2 - Catches

3 - Side curtain airbag guide

• Clipped

4 - Screw

• Qty. 7
• Tightening torque: 5 Nm

5 - Connector
