Side curtain protection (driver and passenger sides) (Golf), assembly overview

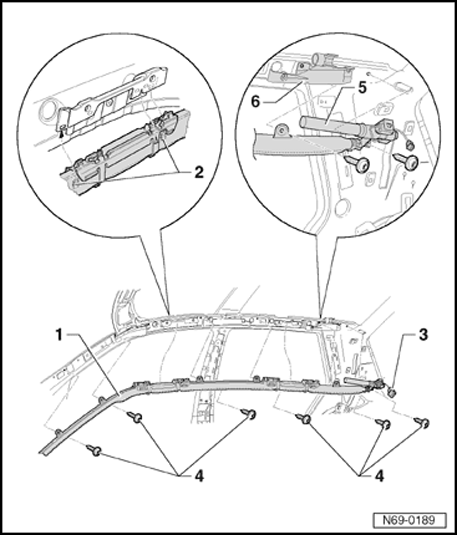

Fig 1: Side Curtain Protection Assembly Overview (Driver And Passenger Sides -- Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side curtain airbag

• Removing → Side curtain protection (driver and passenger sides) (Golf), removing and installing

2 - Catches

3 - Connector

4 - Screw

• Qty. 6
• Tightening torque: 5 Nm

5 - Igniter

6 - Retainer
