Front Passengers airbag unit (Instrument panel with airbag seam), assembly overview

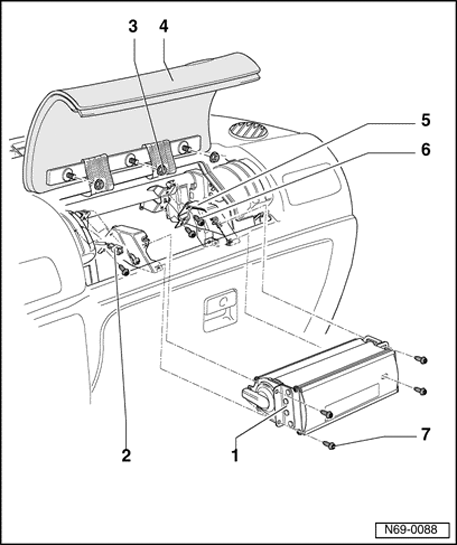

Fig 1: Front Passengers Airbag Unit Assembly Overview Instrument Panel With Airbag Seam)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front passenger airbag unit

• Removing → Front Passengers airbag unit (Instrument panel with airbag seam), removing and installing

2 - Connector

3 - Hex nut

• Tightening torque: 4 Nm

4 - Cover

5 - Supports

• Always replace after airbag has deployed.

6 - Hex head bolt

• Tightening torque: 2.5 Nm

7 - Hex head bolt

• Tightening torque: 2.5 Nm
