Drivers side airbag unit, removing and installing (Three-spoke steering wheel): Removing

WARNING: This page is about a different variant/trim than selected.

CAUTION: Observe safety precautions for working on airbags → Safety precautions for work on airbags .

Release steering column adjustment, pull out completely and push into upper position.
Secure steering column adjustment.
Turn steering wheel - 1 - until the steering wheel spoke is in a vertical position.

Fig 1: Drivers Side Airbag Unit Assembly Overview (Three-Spoke Steering Wheel)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place a screwdriver approx. 175 mm long from behind in steering wheel bezel hole (insert screwdriver approx. 45 mm).

Press screwdriver upward - arrow -. In this case, clamp - 10 - will be pressed back and the catch - 3 - of the airbag unit will thereby disengage.
Turn steering wheel back 180 ° and disengage second catch on the opposite side.
Turn steering wheel - 1 - to center position (wheels in straight-ahead position).

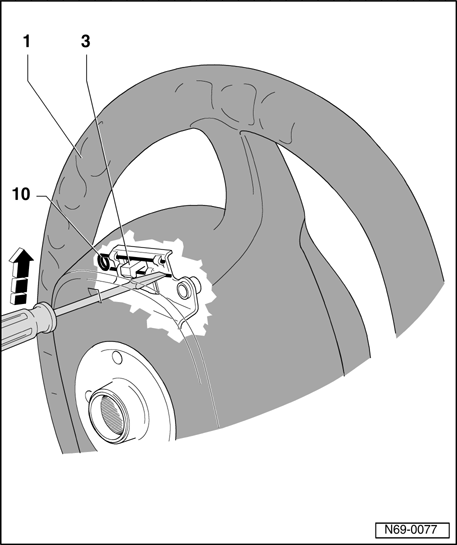

Fig 2: Identifying Screwdriver, Steering Wheel, Airbag Unit Catch And Clamp (Three-Spoke Steering Wheel)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
