Driver and front passenger seat side airbags, assembly overview

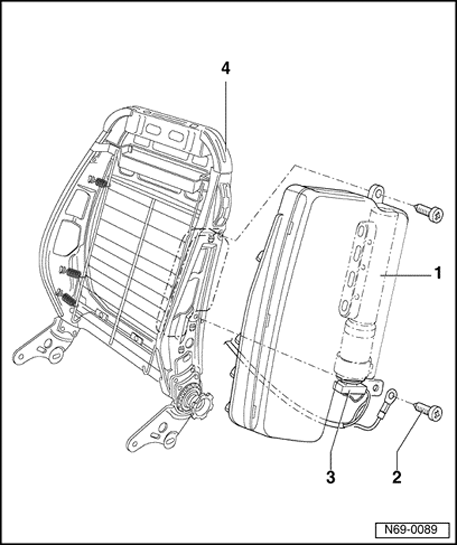

Fig 1: Driver And Front Passenger Seat Side Airbags Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Drivers and passengers seat side airbags

• Removing → Driver and front passenger seat side airbags, removing and installing

2 - Screw

• Qty. 2
• Tightening torque: 7 Nm

3 - Connector

4 - Backrest frame
