Rear wheel-housing liner

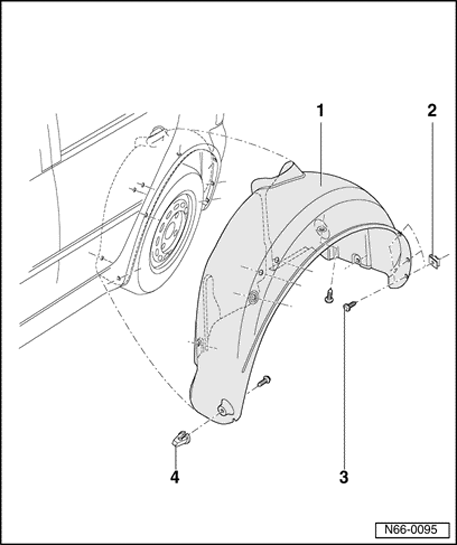

Fig 1: Identifying Rear Wheelhousing Liner, Nuts & Screws

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Wheelhousing liner

• Material - PP/EPDM
• Removing

• Remove wheel. Tightening torque of wheel bolts = 120 Nm.
• Remove bolts (Qty. 7) and remove wheel-housing liner.

2 - Speed nut

• Connected to bumper cover

3 - Screw

4 - Expanding nut
