Additional bolts at front valance spoiler, installing

Additional bolts (Rear view)

• Drill with 4 mm drill the front valance spoiler and wheel housing liner. Hole must be approx. 10 mm away from both outer edges, dimension - a  - = 10 mm

Fig 1: Identifying Additional Bolts At Front Valance Spoiler

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front valance spoiler

2 - Bolts

• 2 Nm

3 - Additional bolts

• 2 Nm

4 - Front wheel housing liner

• Install speed nut on front valance spoiler and then bolt front wheel housing liner and front valance spoiler, item - 3  -

Additional bolts (Front view)

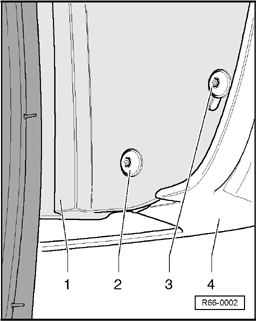

Fig 2: Identifying Additional Bolts At Front Valance Spoiler (Front View)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front wheel housing liner

2 - Additional bolts

• 2 Nm

3 - Bolts

• 2 Nm

4 - Front valance spoiler
