Roof molding

WARNING: This page is about a different variant/trim than selected.

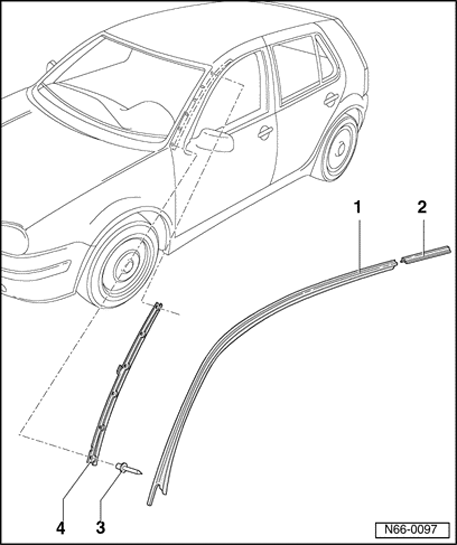

Fig 1: Identifying Roof Molding

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Roof molding

Align roof molding at B-pillar (two-door) or C-pillar (four-door) and continue installing toward front.

2 - Cover strip

Insert cover strip into pocket of roof molding up to stop, then press into roof channel.

A lubricant may be used for installation.

3 - Hollow rivet

4 - Angle strip
