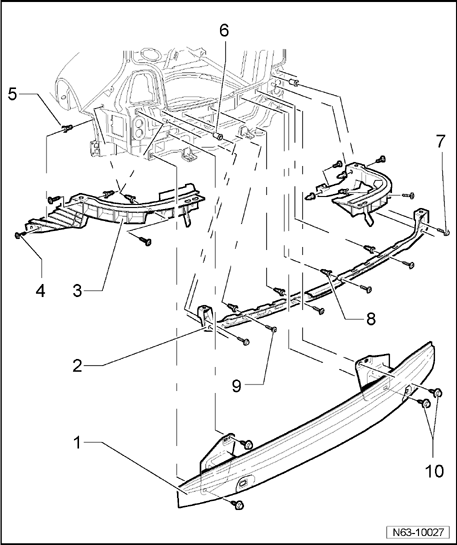

Rear bumper carrier (Golf R32), assembly overview
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.
1 - Bumper carrier
2 - Attachment rail
3 - Guide piece
- To remove and install, pull out/slide in bumper cover parallel out of guide pieces (left and right sides)
4 - Bolt
- Qty. 3
- 1.5 Nm
5 - Expanding nut
- Qty. 3
6 - Internally threaded pop rivet
- Qty. 2
7 - Bolt
- Qty. 2
- 6.6 Nm
8 - Expanding nut
- Qty. 4
9 - Bolt
- Qty. 4
- 1.5 Nm
10 - Bolt
- Qty. 4
- 20 Nm
