Drive motor for sunroof, adjusting (zero position)
WARNING: This page is about a different variant/trim than selected.
Adjustment of zero position may be necessary if drive motor was removed while not in zero position or sunroof was closed or opened via emergency operation.
Drive motor removed, but electrical wires connected.
- Move automatic rotary switch to "roof opened" position.
- Move automatic rotary switch to "roof closed" position.
- Move automatic rotary switch to "roof tilted" position.
- Move automatic rotary switch to "roof closed" position.
- Install drive motor in this position (zero position) with sunroof closed.

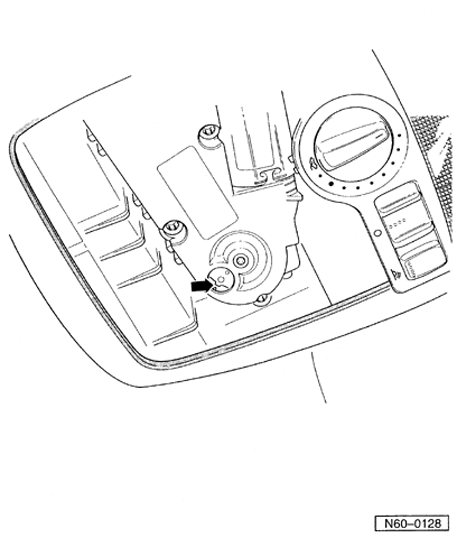

As of calendar week 32/98, "zero position" can be recognized by a viewing window on motor (markings must align - arrow - ).
