Front water drain hoses:

WARNING: This page is about a different variant/trim than selected.

NOTE:

For cleaning, it is recommended that you create your own assisting tool out of a speedometer inner cable, approx. 2300 mm (90.5 in.) long.

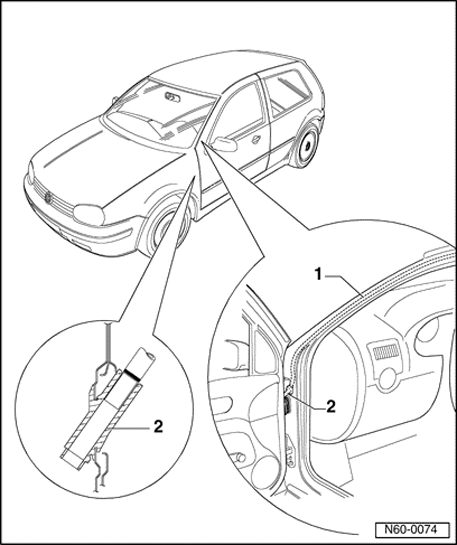

Fig 1: Identifying Front Water Drain Hoses & Hose Grommet

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front water drain hoses

Front water drain hoses are routed in A-pillar and end between door and A-pillar. Cleaning is performed at cut out for sunroof.

2 - Hose grommet
