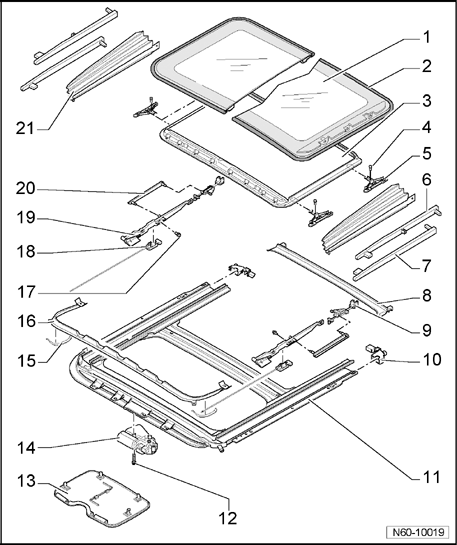

Sunroof with glass panel, assembly overview

1 - Glass panel for sunroof (single pane safety glass)

• Removing glass panel for sunroof. Refer to Glass panel for sunroof, removing
• Installing glass panel for sunroof. Refer to Glass panel for sunroof, installing
• Adjusting glass panel for sunroof. Refer to Glass panel for sunroof (height adjustment), adjusting

2 - Panel seal

• Adjusting panel seal. Refer to Panel seal, adjusting
• Seal join at center in rear area
• Panel seal, replacing. Refer to Panel seal, replacing

3 - Sliding headliner

• Removing and installing sliding headliner. Refer to Sliding headliner, removing

4 - Countersunk screws (microencapsulated)

• Always use new countersunk screws
• 3.5 Nm

5 - Slider

6 - Upper trim

• Up to calendar week 35 2002 (CW 35/02)
• Removing. Refer to Glass panel for sunroof, removing

7 - Lower trim

• Up to calendar week 35 2002 (CW 35/02)
• Removing. Refer to Glass panel for sunroof, removing

8 - Water channel

• Removed together with slotted guide rail

9 - Guide locking hook

10 - End piece

• Use Butyl adhesive sealing cord AKL 450 005 05   for sealing

11 - Installation unit

• Removing and installing installation unit. Refer to Installation unit, removing and installing
• if necessary use special grease G 000 450 02 exclusively to grease guide channels, otherwise functions cannot be guaranteed.

12 - Bolt

• 3.5 Nm

13 - Hex wrench for emergency operation

• Clipped in on drive motor cover

14 - Drive motor

• Removing. Refer to Drive motor for sunroof, removing
• Adjusting drive motor (zero position). Refer to Drive motor for sunroof, adjusting (zero position)

15 - Spring

16 - Wind deflector

• Removing. Refer to Wind deflector, removing

17 - Torx screw

• Torx T25
• 4.5 Nm

18 - Rear guide

• Removed together with slotted guide rail

19 - slotted guide rail

• Removing. Refer to Slotted guide rail, removing

20 - Gap bracket

• Removed together with slotted guide rail

21 - Trim piece

• From calendar week 36 2002 (CW 36/02) on
• Removing. Refer to Glass panel for sunroof, removing
• Installing. Refer to Glass panel for sunroof (height adjustment), adjusting
