Lock cylinder housing, removing and installing

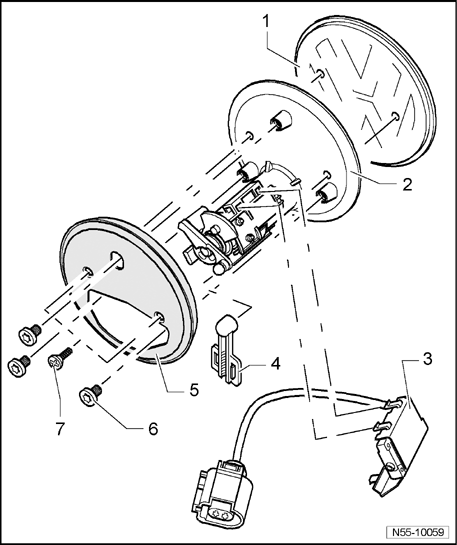

Fig 1: Exploded View Of Lock Cylinder Housing (Jetta)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - VW-symbol

• consisting of emblem carrier and message
• To install VW symbol, remove protective foil and adhere to lock cylinder housing using two-sided adhesive tape

2 - Lock cylinder housing

• Removing

• Remove rear lid trim. Refer to 70 - INTERIOR TRIM
• Disconnect connector for micro-switch / wiring harness.
• Remove operating rod at actuator lever.
• Remove screws (3x).

• Remove lock cylinder housing with VW symbol from rear lid.

• Installing:

Installation is performed in reverse order of removal.

3 - Micro-switch

• For vehicles with central locking system
• For vehicles without central locking system
• Allocation Original parts distributor
• Removing and installing. Refer to Micro-switch, removing and installing

4 - Linkage clip

• To remove operating rod, disconnect linkage clip and pull open

5 - Seal

• Attached in area of lock cylinder housing

6 - Bolt

• Qty. 3
• 4 Nm

7 - Bolt

• Qty. 2
• 0.3 Nm
