Lock cylinder housing, removing and installing

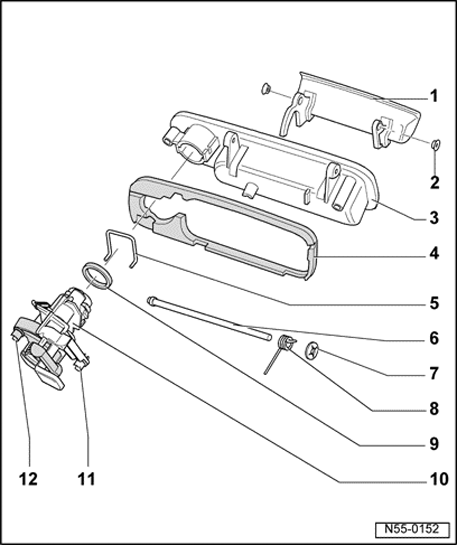

Fig 1: Exploded View Of Lock Cylinder Housing (Golf)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Handle

2 - Guide sleeves

3 - Handle recess

4 - Seal

5 - Retaining clip

6 - Pin

7 - Circlip

8 - Spring

9 - Seal

10 - Lock cylinder housing

• Removing

• Unclip lid trim (handle is secured with a bolt).
• Unclip pull lever for lid lock (operating rod for central locking system if necessary), pry out locking clamp and remove lock cylinder housing from grip plate.

11 - Rod clip

• For lid lock

12 - Rod clip

• For actuator
