Pressure line on automatic transmission 01M, securing

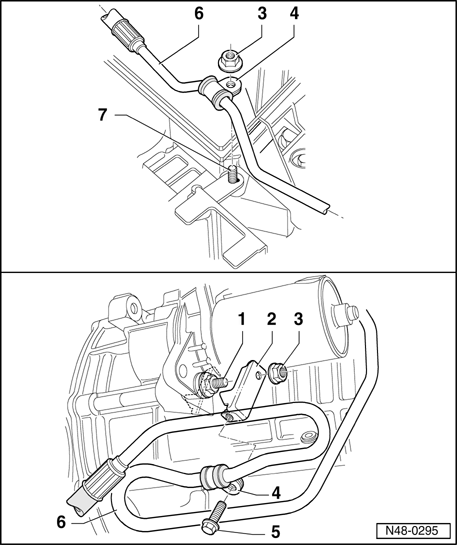

Fig 1: Securing Pressure Line On Automatic Transmission 01M

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Securing bolt on starter

2 - Bracket

3 - Hex nut, 22 Nm

4 - Clamp

5 - Hex head bolt, 22 Nm

6 - Pressure line

7 - Securing bolt on transmission
