Pressure line on 5-speed manual transmission 02K, securing

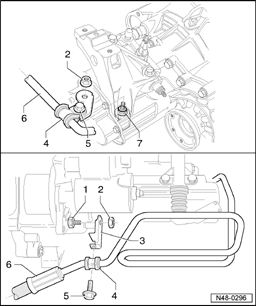

Fig 1: Securing Pressure Line On 5-Speed Manual Transmission 02K

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Securing bolt on starter

2 - Hex nut, 22 Nm

3 - Bracket

4 - Clamp

5 - Hex head bolt, 22 Nm

6 - Pressure line

7 - Securing bolt on transmission
