Pressure line and suction hose on vehicles with TDI engine and air conditioner, securing

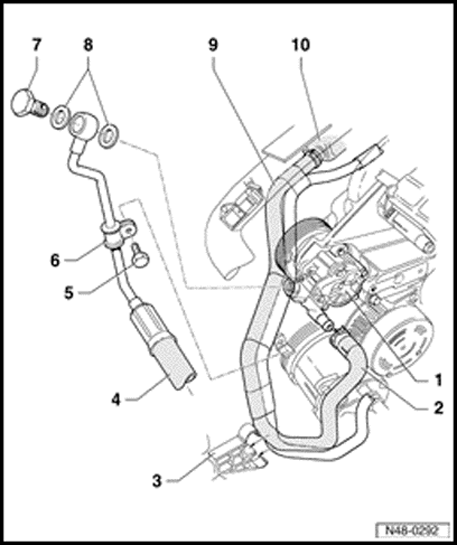

Fig 1: Securing Pressure Line And Suction Hose On Vehicles With TDI Engine And Air Conditioner

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Power steering pump

• Check delivery pressure → Power steering pump delivery pressure, checking
• Fill with fluid before installing → Power steering pump, reservoir and hydraulic lines

2 - Intake hose

3 - Bracket

4 - Pressure line

5 - Hex head bolt, 22 Nm

6 - Clamp

7 - Banjo bolt, 38 Nm

8 - Seal ring

• Replace

9 - Intake hose

10 - Reservoir
