Pressure line and intake hose on vehicles with TDI engine and no air conditioner, securing

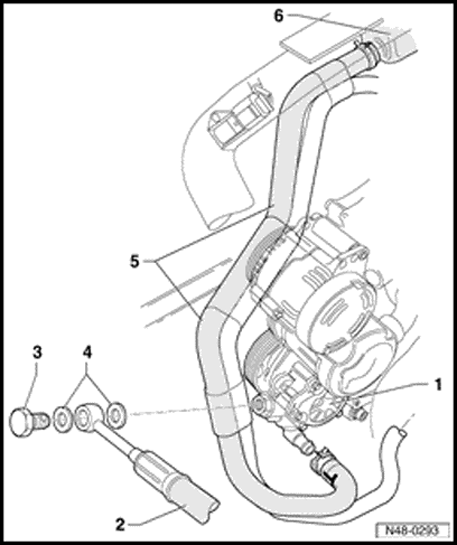

Fig 1: Securing Pressure Line And Intake Hose On Vehicles With TDI Engine And No Air Conditioner

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Power steering pump

• Check delivery pressure → Power steering pump delivery pressure, checking
• Fill with fluid before installing → Power steering pump, reservoir and hydraulic lines

2 - Pressure line

3 - Banjo bolt, 38 Nm

4 - Seal ring

• Replace

5 - Intake hose with coolant hose

6 - Reservoir
