Pressure line and intake hose on vehicles with 1.4 ltr., 1.6 ltr., 1.9 ltr. SDI/TDI engines without an air conditioner, securing
WARNING: This page is about a different variant/trim than selected.
VR5 and VR6 with/without air conditioner

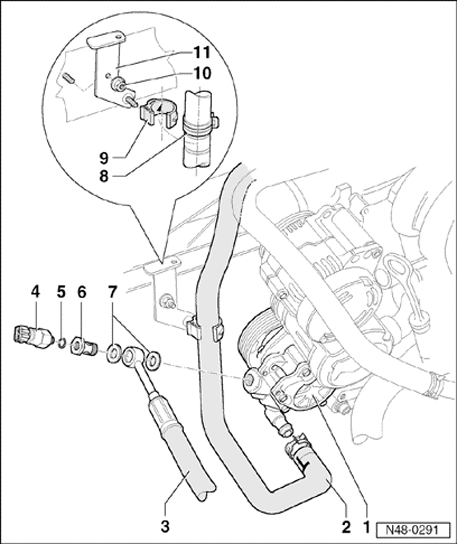

Fig 1: Securing Pressure Line And Intake Hose On Vehicles With 1.4 Ltr., 1.6 Ltr., 1.9 Ltr. SDI/TDI Engines Without An Air Conditioner
1 - Power steering pump
- Check delivery pressure → Power steering pump delivery pressure, checking
- Fill with fluid before installing → Power steering pump, reservoir and hydraulic lines
2 - Intake hose
3 - Pressure line
4 - Pressure switch
- Switches at 40 bar
- Tighten to 15 Nm
5 - Seal ring
- Replace
6 - Banjo bolt, 38 Nm
7 - Seal ring
- Replace
8 - Colored marks on intake hose
White or yellow ring must seat within retainer.
9 - Bracket
10 - Hex nut
11 - Bracket
