Pressure line and intake hose on vehicles with 1.4 ltr., 1.6 ltr. engines with an air conditioner, securing
WARNING: This page is about a different variant/trim than selected.

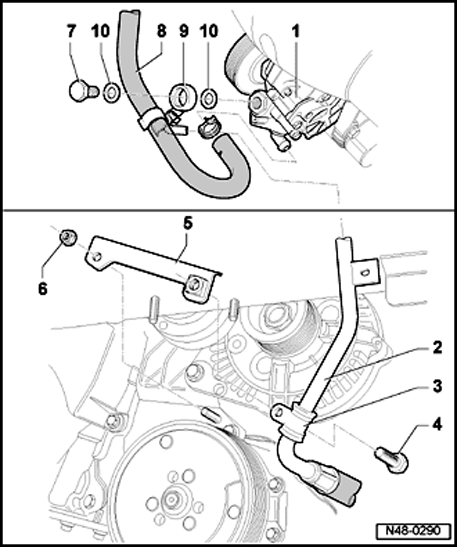

Fig 1: Securing Pressure Line And Intake Hose On Vehicles With 1.4 Ltr., 1.6 Ltr. Engines With An Air Conditioner
1 - Power steering pump
- Check delivery pressure → Power steering pump delivery pressure, checking
- Fill with fluid before installing → Power steering pump, reservoir and hydraulic lines
2 - Pressure line
3 - Clamp
4 - Hex head bolt, 22 Nm
5 - Bracket
6 - Hex nut, 22 Nm
7 - Banjo bolt, 38 Nm
8 - Intake hose
9 - Pressure hose retainer
10 - Seal ring
- Replace
