Pressure line and intake hose on SDI with air conditioner, securing

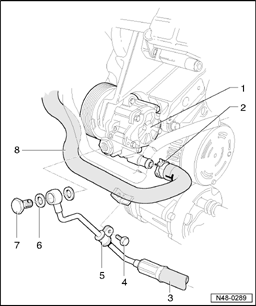

Fig 1: Securing Pressure Line And Intake Hose On SDI With Air Conditioner

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Power steering pump

• Check delivery pressure → Power steering pump delivery pressure, checking
• Fill with fluid before installing → Power steering pump, reservoir and hydraulic lines

2 - Hose clamp

3 - Pressure line

4 - Hex head bolt, 22 Nm

5 - Clamp

6 - Seal ring

• Replace

7 - Banjo bolt, 38 Nm

8 - Intake hose
