High-mounted power steering pump, assembly overview

Vehicles with high mounted power steering pump

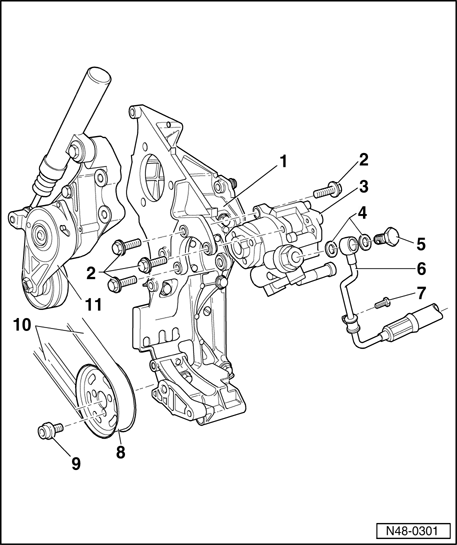

Fig 1: High-Mounted Power Steering Pump Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bracket

2 - Hex head bolt, 25 Nm

3 - Power steering pump

• Check delivery pressure
• Fill with fluid before installing → Power steering pump, reservoir and hydraulic lines

4 - Seal ring

• Replace

5 - Banjo bolt, 38 Nm

6 - Pressure line

7 - Hex head bolt, 22 Nm

8 - Belt drive pulley

9 - Hex socket head bolt

• 25 Nm

10 - Ribbed V-belt

• Mark direction of travel before removing
• Application See Parts Catalog
• Removing and belt routing → 13 - ENGINE - CRANKSHAFT, CYLINDER BLOCK for 1.8 LITER 4-CYL. 5V TURBO ENGINE MECHANICAL, ENGINE CODE(S): AWD, AWW, AWP (A4 PLATFORM), 13 - ENGINE - CRANKSHAFT, CYLINDER BLOCK for 1.9 LITER 4-CYL. 2V TDI ENGINE MECHANICAL, ENGINE CODE(S): ALH (A4 PLATFORM), 13 - ENGINE - CRANKSHAFT, CYLINDER BLOCK for 1.9 LITER 4-CYL. 2V TDI PD ENGINE MECHANICAL, FUEL INJECTION GLOW PLUG, ENGINE CODE(S): BEW (A4 PLATFORM), 13 ENGINE - CRANKSHAFT, CYLINDER BLOCK for 2.0 LITER 4-CYL. 2V ENGINE MECHANICAL, FUEL INJECTION & IGNITION, ENGINE CODE(S): AEG, AVH, AZG, BBW, BEV (A4 PLATFORM), 13 - ENGINE - CRANKSHAFT, CYLINDER BLOCK for 2.8 LITER VR6 2V ENGINE MECHANICAL, ENGINE CODE(S): AFP (A4 PLATFORM) or 13 - ENGINE - CRANKSHAFT, CYLINDER BLOCK for 2.8 LITER VR6 4V ENGINE MECHANICAL, ENGINE CODE(S): BDF (A4 PLATFORM)
• Checking condition 37Ribbed belts; Checking condition

11 - Ribbed belt tensioner
