Rear wheel bearing, pressing out and in with trailing arm installed: Notes

WARNING: This page is about a different variant/trim than selected.

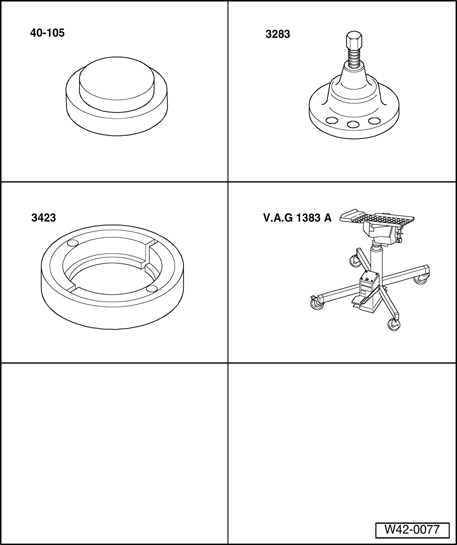

Fig 1: Identifying Special Tools - Rear Wheel Bearing, Pressing Out And In With Trailing Arm Installed

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Thrust pad 40 - 105
Hub Puller 3283
Collar F/Wheel Brg. Inner Race 3423
Engine and transmission jack V.A.G 1383 A with universal transmission mount V.A.G 1359/2

Special tools, testers and auxiliary items required

Fig 2: Foot Pump With High Pressure Hose V.A.G 1389 A/1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If there is a hand pump V.A.G 1389/1 available in the dealership it can be converted to a foot pump.

To do this use the conversion set V.A.G 1389/4.

Special tools, testers and auxiliary items required

Fig 3: Wheel Bearing Tool V.A.G 1459 B

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Supplementary Set V.A.G 1459 B/2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 5: Brake Caliper Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.
