Pressing wheel bearing into wheel bearing housing

WARNING: This page is about a different variant/trim than selected.

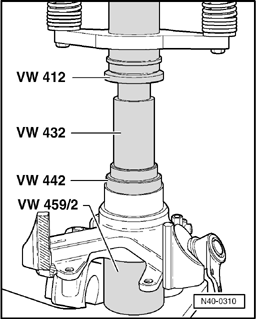

Fig 1: Pressing Wheel Bearing Into Wheel Bearing Housing
GW00002711Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Make sure the circlip is seated correctly. The opening of the circlip must point downward.
