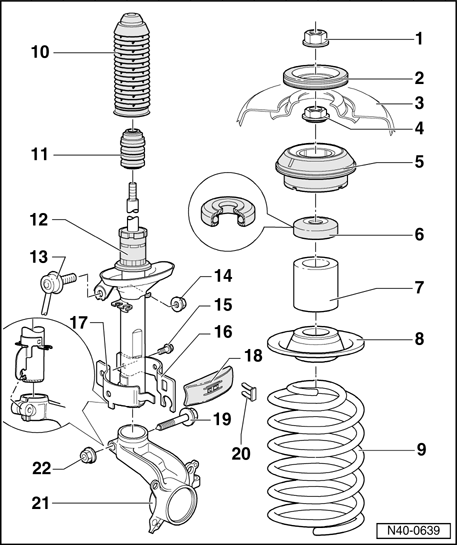

III - Front suspension strut, assembly overview
WARNING: This page is about a different variant/trim than selected.
1 - Self-locking hex nut, 60 Nm
- Replace each time it is removed
2 - Stop
3 - Suspension strut turret
4 - Hex nut, 60 Nm
5 - Strut mount
6 - Axial groove ball bearing
7 - Bushing
8 - Spring plate
9 - Coil spring
- Observe color coding
- Surface of the winding must not be damaged
10 - Protective sleeve
11 - Bump stop
12 - Damper
- Can be replaced individually
- Application See Parts Catalog
13 - Connecting Link
14 - Hex nut, 90 Nm
- Replace each time it is removed
15 - Hex head bolt, 10 Nm
16 - Bracket
17 - Clamp
18 - Heat shield
19 - Hex head bolt
- Replace each time it is removed
- Tip of the bolt must point in direction of travel
20 - Clip
21 - Wheel bearing housing
22 - Nut, self-locking
- 60 Nm and turn additional 90 °
- Never less than 90 ° !
- Turning angle tolerance 90 ° to 120 °
- Replace each time it is removed
