Pressing on inner constant velocity joint

WARNING: This page is about a different variant/trim than selected.

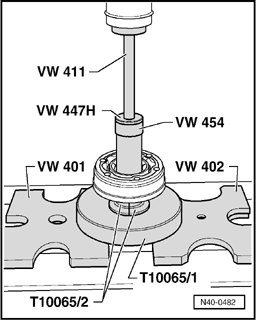

Fig 1: Pressing On Inner Constant Velocity Joint
GW00002771Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Chamfer on inner diameter of ball hub (splines) must face the contact shoulder on the drive shaft.
