Drive shafts, removing and installing: Removing

WARNING: This page is about a different variant/trim than selected.

The wheel bearings must not be loaded when the 12-point nut/hex bolt is loose.

If the bearings are loaded by the vehicles own weight the wheel bearing will be damaged. The wheel bearings will be stressed and the life expectancy reduced.

If a vehicle that has a drive shaft removed is to be moved, an outer CV joint must be installed in place of the drive shaft and be tightened to 50 Nm. Otherwise, the wheel bearing will be damaged.

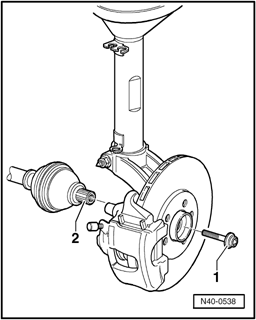

Fig 1: Wheel Hub/Axle Shaft And Hex Bolt - Golf GTI 132 kW
GW00002760Courtesy of VOLKSWAGEN UNITED STATES, INC.

The wheel hub/axle shaft on model "Golf GTI 132 kW" and R32 is secured with a hex bolt - - instead of a 12-point nut. The spline of the outer joint - - is slightly shorter then previous splines and has an internal thread.

The revised assembly sequence and the revised torque specification are contained in the following work sequence.

Vehicles with 12-point nut

Fig 2: Removing Suspension Link Bolts
GW00002140Courtesy of VOLKSWAGEN UNITED STATES, INC.

Vehicles with hex. bolt

Fig 3: Pressing Out Ball Joint Using Ball Joint Puller
GW00002739Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • To protect ball joint threads and for safety reasons leave nut on a few turns.

Continued for all vehicles

Fig 4: Pressing Out Drive Shaft Using Special Tool 3283
GW00002685Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • When pressing axle shaft out ensure sufficient clearance is available.

The axle shaft must not hang down!

The inner joint will be damaged through over-flexing.

The following sequence applies to automatic transmission vehicles only

Fig 5: Identifying Pendulum Support & Bolts
GW00002269Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 6: Pushing Engine/Transmission Assembly Forward With A Lever
GW00002761Courtesy of VOLKSWAGEN UNITED STATES, INC.

Now axle shaft can be removed.

( - Arrow  - points forward)
