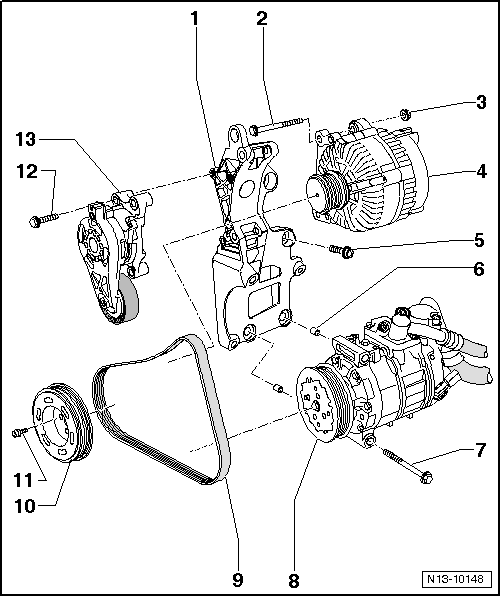

Ribbed Belt And Accessory Drive Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Accessory Bracket
- Bolt, 23 Nm
- Nut, 23 Nm
- Generator
- Removing and installing, refer to [For transmission(s) 0A4, 02E, 09G, 02Q] Removal and Installation .
- To facilitate installing the generator, slightly push back the threaded bushings for the generator bolts.
- Bolt, 40 Nm
- Observe the tightening sequence, refer to Fig 2.
- Bushing
- Quantity: 2.
- Bolt, 25 Nm
- Air Conditioning (A/C) Compressor
- Removing and installing, refer to Removal and Installation .
- Ribbed Belt
- Before removing, mark the direction of rotation using chalk or a felt tip marker.
- Check for wear.
- Do not kink.
- Removing and installing, refer to RIBBED BELT .
- Vibration Damper Pulley
- For the ribbed belt.
- The contact surface to the crankshaft toothed belt gear must be completely free of oil and grease.
- Bolt
- Always replace.
Strength category 8.8: 10 Nm + 90° (1/4) additional turn.
Strength category 10.9: 20 Nm + 90° (1/4) additional turn.
- Always replace.
- Bolt, 23 Nm
- Ribber Belt Tensioner
- To release the tension on ribbed belt, rotate using an open end wrench.
