Rear final drive, disassembling and assembling

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

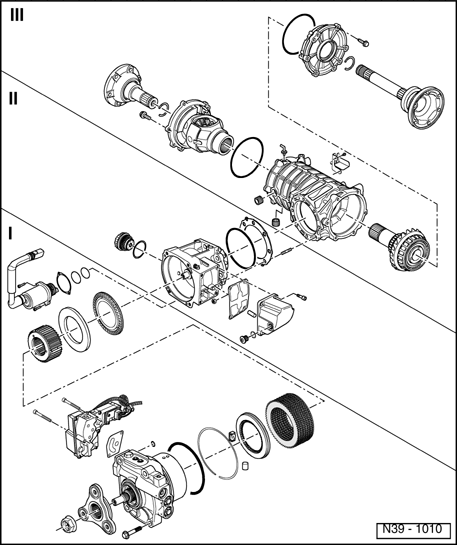

Fig 1: Exploded View Of Rear Final Drive Components (Parts I, II & III)

GW00001993

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - Removing and installing cover for Haldex clutch and clutch plates → Cover for Haldex clutch and clutch plates, removing and installing

II - Removing and installing drive pinion housing → Drive pinion housing, removing and installing

III - Removing and installing differential and head bevel gear / input shaft → Differential and head bevel gear / input shaft, removing and installing

Removing and installing cover for Haldex clutch from disc housing → Cover for Haldex clutch / disc housing, removing and installing

Disassembly and assembly sequence → Disassembly and assembly sequence
