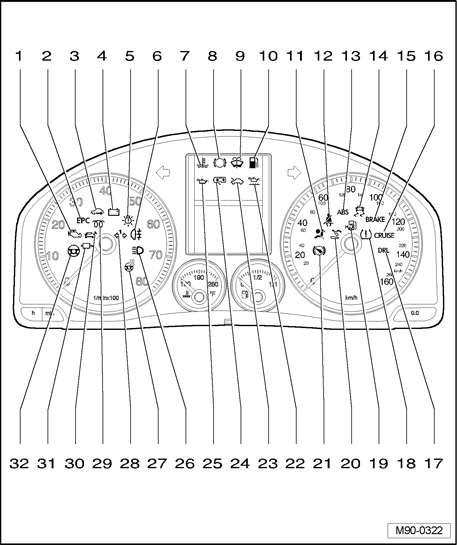

Instrument cluster warning and indicator lamps, overview
- Applicability and layout of instrument cluster warning and indicator lamps are market and engine dependent. Some lamps illustrated here may not apply to USA/CDN models.
- Additional information:
Owners Manual
Wiring Diagrams Component Locations
1 - Malfunction Indicator Lamp (MIL)
- Indicates malfunction affecting exhaust emissions
2 - Electronic Power Control (EPC)
- Only vehicles with gasoline engine
3 - Anti-theft Immobilizer
4 - Generator (GEN) control
5 - Lamp failure
- Indicates failure of an exterior lamp
6 - Rear fog lights
7 - Engine coolant temperature / engine coolant level
8 - Brake pad wear
9 - Low washer fluid level
10 - Low fuel level
11 - Airbag / safety belt tensioner malfunction indicator
12 - Safety belt
13 - Anti-lock Brake System (ABS)
14 - Electronic Stabilization Program (ESP)
15 - Parking brake / brake system malfunction
16 - Cruise Control System (CCS)
17 - Daytime running lights
18 - Tire pressure monitor indicator
19 - Water in fuel
20 - Backrest lock
21 - Shift Lock
- Only vehicles with automatic transmission
22 - Engine oil level
23 - Front hood open
24 - Door open
25 - Engine oil pressure
26 - High beam
27 - Steering wheel heater
28 - Trailer flasher system
29 - Glow Plug System
- Only vehicles with Diesel engine
30 - Fuel filler cap
31 - Exhaust system particulate trap
32 - Power steering system (electo-mechanical power steering)
