Special Tools

Special Tools And Workshop Equipment Required

• Dial gauge
• Hand drill with plastic brush attachment
• Flat scraper
• Protective glasses
• Caliper gauge
• Three bolts M6 x 35 mm
• Two bolts M7 x 35 mm
• Silicone sealantD 176 404 A
• Measuring bar VW 382/7
  Fig 1: Identifying Measuring Bar VW 382/7

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Magnetic plate 50 mm dia. VW 385/17
  Fig 2: Identifying Final Measurement Plate VW385/17

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine support bridge 10 - 222 A
  Fig 3: Identifying 10-222A Engine Support Bridge With 10-222A/8 Bracket For Engine

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter 10 - 222 A/8
  Fig 4: Identifying Engine Support Feet 10-222 A/8

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter 10 - 222 A/820
  Fig 5: Identifying Adapter 10 - 222 A/820

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Drift T10060A
  Fig 6: Identifying Locking Pin T10060 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Counter-holder tool 3067
  Fig 7: Identifying 3067 Counter-Hold Tool

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Counter-holder tool 3099
• Seal remover 3203
• Assembly tool T10053
• Torque Wrench V.A.G 1331
• Torque Wrench V.A.G 1332

Special Tools And Workshop Equipment Required

• Counter-holder tool 3099
• Assembly tool T10053
• Torque Wrench V.A.G 1331
• Torque Wrench V.A.G 1332

Special Tools And Workshop Equipment Required

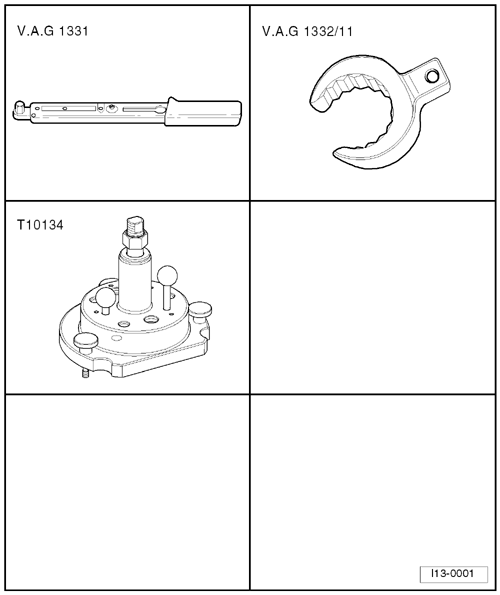

• Torque Wrench V.A.G 1331
• Assembly tool V.A.G 1332/11
• Assembly tool T10134

Special Tools And Workshop Equipment Required

• drift VW 207 C
• Or centering mandrel 3176
• Puller T10055 with adapter T10055/3
• 1 internal puller Kukko 21/2
